Sissejuhatus

Tailscale https://tailscale.com/ tarkvara võimaldab muu hulgas nö ad-hoc vpn lahenduse moodustamist

  • kasutada on lihtne (erinevalt vanilla wireguard kasutamisest ei pea võtmete-seadistamiste-jms tegelema)
  • massiivselt erinevate platvormide kliente (nutitelefonid, nö tavalised operatsioonisüsteemid jms)
  • eeldab tailscale.com isandate usaldamist
  • töötab nö udp-hole-punching p2p põhimõttel
  • võimalik sättida omavahel suhtlema tulemüüride taga asuvaid privaatseid ip aadresse kasutavaid seadmeid, iseeneest nad otse üksteise poole pöörduda ei saaks

Mõisted

  • tailscale
  • tailnet
  • taildrop

Tööpõhimõte

Väited

  • lihtne käivitada lõppkasutaja seisukohast (ei ole vaja tegeleda võtmetega otseselt, st see tehakse taustal automaatselt ära)
  • kasutamine eeldab omajagu tailscale.com isandate usaldamist
  • põhineb wireguard tarkvaral

Võrgujoonis

                                 tailscale isand internetis

                                       _______
                                      |       |
                                      |       |
                                      |_______| eth0 - pub ip aadress
                                          |
                                          |


                                       internet


               pub ip aadress                                pub ip aadress
              local tulemüür - 01                           local tulemüür - 02
               no dnat, only snat                            no dnat, only snat
                 no spat                                      no spat


                     |                                                |
                  ___|___  eth0 - priv ip aadress                  ___|___  eth0 - priv ip aadress
                 |       |                                        |       |
                 |       |                                        |       |
                 |_______| tailscale0 - 100.121.207.99/32         |_______| tailscale0 - 100.66.245.64/32

                  pwrk-02                                           ts-01

kus

  • local tulemüür 01 ja 02 on eraldi seade avaliku ja sisemise ip aadressiga, seest internetti suunal toimub nat, väljast sisse mitte; kusjuures seest välja pakettidel ei toimub source port muutust
  • pwrk-02 ja ts-01 ei saa otse üksteise poole pöörduda, seda tehakse vahendaja (isanda) abil - kasutades 'udp hole punching' tehnikat

tulemusena töötab kontakt tailscale liideste vahel

root@pwrk-02:~# ping -c 2 100.66.245.64
PING 100.66.245.64 (100.66.245.64) 56(84) bytes of data.
64 bytes from 100.66.245.64: icmp_seq=1 ttl=64 time=28.9 ms
64 bytes from 100.66.245.64: icmp_seq=2 ttl=64 time=14.4 ms

--- 100.66.245.64 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 14.369/21.623/28.878/7.254 ms

UDP hole punching

UDP hole punching seisneb selles, et

  • pwrk-02 pöördub isanda poole ja sealt on näha välja mineva paketi src port
  • ts-01 pöördub isanda poole ja sealt on näha välja mineva paketi src port
  • isand vastab mõlemale teise kaaslase src ip pordiga
  • pwrk-02 ja ts-01 pöörduvad üksteise poole nö pimedalt ja vastavad üksteisele pimedalt
  • kuna kummagi arvuti eest töötav tulemüür ei muuda src porti väärtust ja stateful tulemüür avab tagasipöörduvale udp paketile läbipääsu, siis saab nö omaalgatuslikult sisse saadetud vastuspakett tulemüürist läbi
  • jätkub suures osas peer-to-peer suhtlemine

Misc

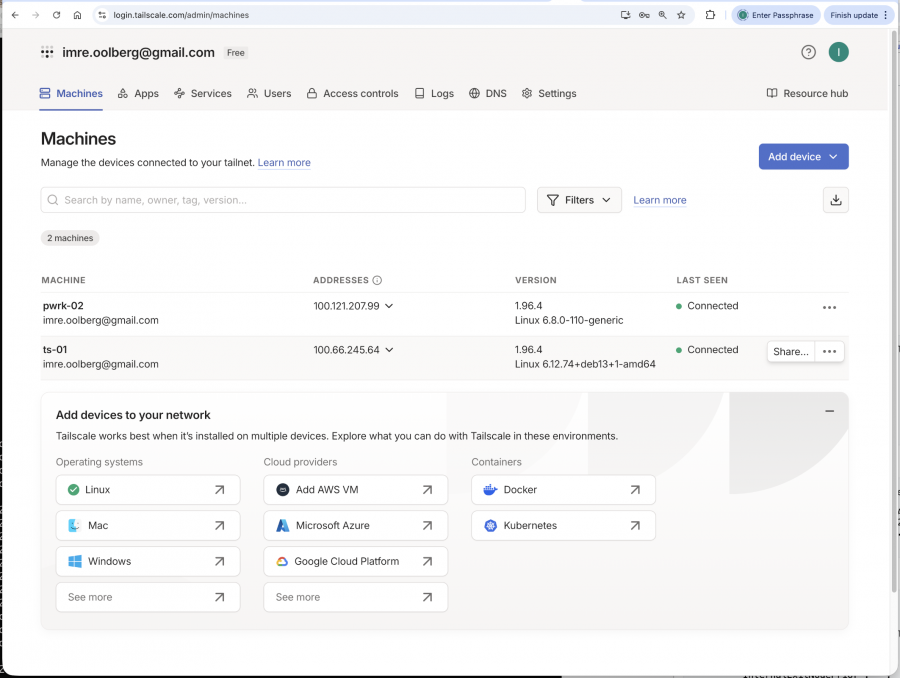

Teenusepakkuja juures seadmete registreerimine


kus

  • pwrk-02 - seade ühes interneti otsas
  • ts-01 - seade teises interneti otsas

Registreerimine toimub sellisel põhimõttel

  • kasutajal on kasutada google.com konto
  • kasutaja logib sisse tailscale veebikohta google kontoga (oidc vms lähenemise abil) ja näeb seal registreeritud arvutite nimekirja vms
  • kasutaja ütleb lisatavas arvutis tailscale up ja vastuseks saab lingi
...
  • kasutaja pasteb lingi brauserisse millega on google kontoga kontakt ning seda linki aktsepteeritakse
  • teise arvutiga sama tegevus
  • tulemusena on tailscale isandat veendud, et mõlemad arvutid on sama google konto kasutaja kontrolli all


Tarkvara paigaldamine

# curl ...

Failisüsteemi lisatakse muu hulgas

root@pwrk-02:~# dpkg -L tailscale
/etc
/etc/default
/etc/default/tailscaled
/lib
diverted by base-files to: /lib.usr-is-merged
/lib/systemd
/lib/systemd/system
/lib/systemd/system/tailscaled.service
/usr
/usr/bin
/usr/bin/tailscale
/usr/sbin
/usr/sbin/tailscaled

kusjuures tailscale ja tailscaled on staatilised failid

root@pwrk-02:~# ldd /usr/bin/tailscale
	not a dynamic executable

root@pwrk-02:~# ldd /usr/sbin/tailscaled
	not a dynamic executable

root@pwrk-02:~# file /usr/bin/tailscale
/usr/bin/tailscale: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, Go BuildID=Frc8czhMPI4TkzPHZLGo/SoqAvNVuRoh1d3027b4h/PwayEUv1R2URpzOWznLI/Hbm-pdUsoQkTLL0ztPat, BuildID[sha1]=afade7a0fdda938c236dbaf9f56bccc905891ba9, with debug_info, not stripped

root@pwrk-02:~# file /usr/sbin/tailscaled
/usr/sbin/tailscaled: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), statically linked, Go BuildID=_7aHzSbINt8U-7aal4KV/jio6APNmVYxIeIZkrKRE/lUrKhZFyG0goF2KRA5Ol/yXJqaT22If5OOJtesmxs, BuildID[sha1]=5d88bea66e8933134c77d311b2481e0a206dc523, with debug_info, not stripped

asjasse puutuvad failid sh krüptomateral

root@pwrk-02:~# find /var/lib/tailscale/ -ls
   787147      4 drwx------   3 root     root         4096 Apr 25 15:29 /var/lib/tailscale/
   787040      4 -rw-------   1 root     root         2698 Apr 25 15:29 /var/lib/tailscale/tailscaled.state
   786536     16 -rw-------   1 root     root        15055 Apr 25 13:45 /var/lib/tailscale/derpmap.cached.json
   787183      4 -rw-------   1 root     root          209 Apr 25 13:42 /var/lib/tailscale/tailscaled.log.conf
   786579      4 drwx------   3 root     root         4096 Apr 25 13:45 /var/lib/tailscale/files
   787007      4 drwx------   2 root     root         4096 Apr 25 13:45 /var/lib/tailscale/files/imre.oolberg-gmail.com-uid-4916328083301376
   787250      0 -rw-------   1 root     root            0 Apr 25 16:52 /var/lib/tailscale/tailscaled.log1.txt
   787282      0 -rw-------   1 root     root            0 Apr 25 17:00 /var/lib/tailscale/tailscaled.log2.txt

kus

root@pwrk-02:~# cat /var/lib/tailscale/tailscaled.state
{
  "_current-profile": "cHJvZmlsZS1iMTA3",
  "_machinekey": "cHJpdmtleTpmOGNjYzA2YTgyMDllMTExZDgwZTgxZDMwM ...",
  "_profiles": "eyJiMTA3Ijp7IklEIjo ... ",
  "profile-b107": "ewoJIk ... "

kus

# echo "ewoJIk ... " | base64 -d

{
	"ControlURL": "https://controlplane.tailscale.com",
	"RouteAll": false,
	"ExitNodeID": "",
	"ExitNodeIP": "",
	"InternalExitNodePrior": "",
	"ExitNodeAllowLANAccess": false,
	"CorpDNS": true,
	"RunSSH": false,
	"RunWebClient": false,
	"WantRunning": true,
	"LoggedOut": false,
	"ShieldsUp": false,
	"AdvertiseTags": null,
	"Hostname": "",
	"NotepadURLs": false,
	"AdvertiseRoutes": null,
	"AdvertiseServices": null,
	"Sync": null,
	"NoSNAT": false,
	"NoStatefulFiltering": true,
	"NetfilterMode": 2,
	"AutoUpdate": {
		"Check": true,
		"Apply": true
	},
	"AppConnector": {
		"Advertise": false
	},
	"PostureChecking": false,
	"NetfilterKind": "",
	"DriveShares": null,
	"AllowSingleHosts": true,
	"Config": {
		"PrivateNodeKey": "privkey:98adf1348de16 ...",
		"OldPrivateNodeKey": "privkey:0000000000000000000000000000000000000000000000000000000000000000",
		"UserProfile": {
			"ID": 49163 ...,
			"LoginName": "imre.oolberg@gmail.com",
			"DisplayName": "Imre Oolberg",
			"ProfilePicURL": "https://lh3.googleusercontent.com/a/ACg8ocJoZc0K7dx ..."
		},
		"NetworkLockKey": "nlpriv:f7efba98cda43 ...",
		"NodeID": "nE1uKyy .."
	}
}root@pwrk-02:~#

systemd unit

root@pwrk-02:~# systemctl status tailscaled
● tailscaled.service - Tailscale node agent
     Loaded: loaded (/usr/lib/systemd/system/tailscaled.service; enabled; preset: enabled)
     Active: active (running) since Sat 2026-04-25 15:28:10 UTC; 2h 29min ago
       Docs: https://tailscale.com/docs/
   Main PID: 2400 (tailscaled)
     Status: "Connected; imre.oolberg@gmail.com; 100.121.207.99 fd7a:115c:a1e0::1537:cf63"
      Tasks: 11 (limit: 9405)
     Memory: 15.3M (peak: 17.6M)
        CPU: 2.922s
     CGroup: /system.slice/tailscaled.service
             └─2400 /usr/sbin/tailscaled --state=/var/lib/tailscale/tailscaled.state --socket=/run/tailscale/tailscaled.sock --port=41641

Apr 25 15:29:09 pwrk-02 tailscaled[2400]: health(warnable=wantrunning-false): ok
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: health(warnable=warming-up): ok
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: health(warnable=no-derp-connection): ok
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: magicsock: derp-28 connected; connGen=1
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: health(warnable=no-derp-connection): ok
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: [RATELIMIT] format("health(warnable=%s): ok")
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: control: RegisterReq: got response; nodeKeyExpired=false, machineAuthorized=true; authURL=false
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: control: netmap: got new dial plan from control
Apr 25 15:29:09 pwrk-02 tailscaled[2400]: netmap: suggested exit node:  ()
Apr 25 16:51:29 pwrk-02 tailscaled[2400]: wgengine: Reconfig: configuring userspace WireGuard config (with 1/1 peers)

kus

  • paistab wireguard viiteid

Võrguliides noarp point-to-point, nb! mtu on 1280 baiti

root@pwrk-02:~# ifconfig tailscale0
tailscale0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST>  mtu 1280
        inet 100.121.207.99  netmask 255.255.255.255  destination 100.121.207.99
        unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 500  (UNSPEC)
        RX packets 3  bytes 254 (254.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2  bytes 168 (168.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

Ruutinguks kasutatakse abistavat nn tabelit nr 52

root@pwrk-02:~# ip route show
default via 192.168.111.189 dev enp6s18 proto static
192.168.111.0/24 dev enp6s18 proto kernel scope link src 192.168.111.198

root@pwrk-02:~# ip route show table 52
100.66.245.64 dev tailscale0
100.100.100.100 dev tailscale0

käimasoleva kohta info küsimine

root@pwrk-02:~# tailscale netcheck
2026/04/25 17:10:02 portmap: monitor: gateway and self IP changed: gw=192.168.111.189 self=192.168.111.198

Report:
	* Time: 2026-04-25T17:10:02.654619377Z
	* UDP: true
	* IPv4: yes, 80.235.106.155:57953
	* IPv6: no, unavailable in OS
	* MappingVariesByDestIP: false
	* PortMapping:
	* Nearest DERP: Helsinki
	* DERP latency:
		- hel: 12.5ms  (Helsinki)
		- waw: 33.5ms  (Warsaw)
		- ams: 41.7ms  (Amsterdam)
		- fra: 42.1ms  (Frankfurt)
		- par: 49.7ms  (Paris)
		- lhr: 49.8ms  (London)
		- nue: 50.8ms  (Nuremberg)
		- mad: 74.3ms  (Madrid)
		- tor: 115.6ms (Toronto)
		- nyc: 118.7ms (New York City)
		- ord: 127.3ms (Chicago)
		- dbi: 134.5ms (Dubai)
		- iad: 135.4ms (Ashburn)
		- den: 147.3ms (Denver)
		- mia: 156.1ms (Miami)
		- dfw: 167.5ms (Dallas)
		- blr: 177.3ms (Bengaluru)
		- sea: 184.2ms (Seattle)
		- nai: 186.8ms (Nairobi)
		- sfo: 187.8ms (San Francisco)
		- lax: 189ms   (Los Angeles)
		- jnb: 210.3ms (Johannesburg)
		- hnl: 235ms   (Honolulu)
		- sin:         (Singapore)
		- syd:         (Sydney)
		- tok:         (Tokyo)
		- sao:         (São Paulo)
		- hkg:         (Hong Kong)
  • UDP: true - udp port punching on kasutusel

protsess töötab global namespace'ides

root@pwrk-02:~# ps aux | grep scale | grep -v grep
root        2400  0.0  0.4 1354240 40380 ?       Ssl  15:28   0:02 /usr/sbin/tailscaled --state=/var/lib/tailscale/tailscaled.state --socket=/run/tailscale/tailscaled.sock --port=41641

root@pwrk-02:~# lsns -p 2400
        NS TYPE   NPROCS PID USER COMMAND
4026531834 time      156   1 root /sbin/init
4026531835 cgroup    156   1 root /sbin/init
4026531836 pid       156   1 root /sbin/init
4026531837 user      156   1 root /sbin/init
4026531838 uts       151   1 root /sbin/init
4026531839 ipc       156   1 root /sbin/init
4026531840 net       156   1 root /sbin/init
4026531841 mnt       148   1 root /sbin/init

töötamise ajal paketifilter

root@pwrk-02:~# iptables-save
# Generated by iptables-save v1.8.10 (nf_tables) on Sat Apr 25 18:32:43 2026
*mangle
:PREROUTING ACCEPT [41408:3647218]
:INPUT ACCEPT [0:0]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [41249:3854567]
:POSTROUTING ACCEPT [0:0]
-A PREROUTING -m conntrack --ctstate RELATED,ESTABLISHED -j CONNMARK --restore-mark --nfmask 0xff0000 --ctmask 0xff0000
-A OUTPUT -m conntrack --ctstate NEW -m mark ! --mark 0x0/0xff0000 -j CONNMARK --save-mark --nfmask 0xff0000 --ctmask 0xff0000
COMMIT
# Completed on Sat Apr 25 18:32:43 2026
# Generated by iptables-save v1.8.10 (nf_tables) on Sat Apr 25 18:32:43 2026
*filter
:INPUT ACCEPT [41137:3630063]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [0:0]
:ts-forward - [0:0]
:ts-input - [0:0]
-A INPUT -j ts-input
-A FORWARD -j ts-forward
-A ts-forward -i tailscale0 -j MARK --set-xmark 0x40000/0xff0000
-A ts-forward -m mark --mark 0x40000/0xff0000 -j ACCEPT
-A ts-forward -s 100.64.0.0/10 -o tailscale0 -j DROP
-A ts-forward -o tailscale0 -j ACCEPT
-A ts-input -s 100.121.207.99/32 -i lo -j ACCEPT
-A ts-input -s 100.115.92.0/23 ! -i tailscale0 -j RETURN
-A ts-input -s 100.64.0.0/10 ! -i tailscale0 -j DROP
-A ts-input -i tailscale0 -j ACCEPT
-A ts-input -p udp -m udp --dport 41641 -j ACCEPT
COMMIT
# Completed on Sat Apr 25 18:32:43 2026
# Generated by iptables-save v1.8.10 (nf_tables) on Sat Apr 25 18:32:43 2026
*nat
:PREROUTING ACCEPT [0:0]
:INPUT ACCEPT [0:0]
:OUTPUT ACCEPT [0:0]
:POSTROUTING ACCEPT [368:32320]
:ts-postrouting - [0:0]
-A POSTROUTING -j ts-postrouting
-A ts-postrouting -m mark --mark 0x40000/0xff0000 -j MASQUERADE
COMMIT
# Completed on Sat Apr 25 18:32:43 2026

töötamise ajal bpf/btf

root@pwrk-02:~# bpftool prog show id 2
2: tracing  name hid_tail_call  tag 7cc47bbf07148bfe  gpl
	loaded_at 2026-04-25T13:40:51+0000  uid 0
	xlated 56B  jited 136B  memlock 4096B  map_ids 2
	btf_id 5

root@pwrk-02:~# bpftool prog dump xlated id 2
int hid_tail_call(unsigned long long * ctx):
; int BPF_PROG(hid_tail_call, struct hid_bpf_ctx *hctx)
   0: (79) r2 = *(u64 *)(r1 +0)
; bpf_tail_call(ctx, &hid_jmp_table, hctx->index);
   1: (61) r3 = *(u32 *)(r2 +0)
   2: (18) r2 = map[id:2]
   4: (85) call bpf_tail_call#12
; int BPF_PROG(hid_tail_call, struct hid_bpf_ctx *hctx)
   5: (b7) r0 = 0
   6: (95) exit
root@pwrk-02:~#

Kasulikud lisamaterjalid

Pärit leheküljelt "https://www.auul.pri.ee/wiki/index.php?title=Tailscale&oldid=3314"
